( The workhorse of the briquette presses )

GP 200

Briquette press with clamping technology

For large volumes of waste

Compared to the GROSS GP 150, the GP 200 is designed to meet higher briquetting requirements. Whilst the GP 150 produces briquettes with a diameter of 70 mm and achieves a throughput of up to 150 kg/h, depending on the material, the GP 200 produces briquettes with a diameter of 80 mm and processes up to 180 kg per hour. It therefore offers timber-processing businesses greater capacity and a larger briquette size. Wood chips, sawdust and other homogeneous waste materials are compressed without the use of binders. The PLC control system enables fully automatic operation.

A GROSS employee advises customers on briquetting in front of a briquette press

Our favourite part: the detail.

Good reasons to buy a GROSS briquette press

Thousands of machines sold on the market

Two people in front of a mountain of wood chips

Short lines of communication and dedicated contact persons

Decades of experience

Three wood chip briquettes in a mobile phone

German craftsmanship

Close-up of the briquette discharge mechanism on a GROSS briquette press for wood waste

Suitable conveyor systems

GROSS briquette press with a bagging carousel and filled bags of round wood briquettes

Personalised energy advice

Premium service

A GROSS employee advises a customer on a briquette press

Hydraulic tank

Contains oil for lubricating the cylinders

Filling tower

Pre-compaction takes place in the filling tower

Clamping cylinder

This is where the final briquette is moulded

Hopper

Generously sized

Press cylinder

Operates hydraulically and compacts the material

Briquette length monitoring

For consistently high-quality briquettes

Mixer

Feeds material into the screw conveyor shaft

Conveyor screw

Feeds material into the filling tower

Technical specifications

The material to be briquetted is fed into the storage hopper either manually or automatically via a filter or conveyor system. A continuously running agitator and a separately controllable discharge screw then transport it to the pressing unit. There, the material is first pre-compacted and then pressed into the finished briquette without the addition of any binding agents. To ensure reliable processing, the material’s moisture content must not exceed 18 per cent.

Technical specifications

Briquette diameter (mm): 80
Dimensions (LxWxH) (mm): 2.406 x 2.015 x 1.405
Hydraulic motor (kW): 11
Hydraulic oil charge (l): 250
Weight (approx. kg): 1.700

Download PDF 2 MB

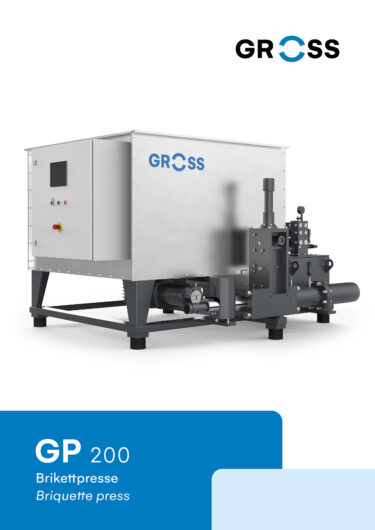

Download PDF 2026_Gross_One-Pager_GP200_web In a new tab

All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
