( Maximum performance for round briquettes )

GP 300 S

Heavy-duty briquette press with clamping technology

For large quantities of waste

The GROSS GP 300 S is designed to handle significantly higher throughput requirements than the GP 200. Its 22-kW hydraulic motor delivers twice the power and enables a material-dependent throughput of up to 350 kg per hour. Compared with the GP 200’s maximum of 180 kg/h, this represents a significant increase in processing capacity. The GP 300 S is therefore particularly suitable for timber-processing businesses where large quantities of waste material need to be reliably briquetted.

A GROSS employee advises customers on briquetting in front of a briquette press

Our favourite part: the detail.

Good reasons to buy a GROSS briquette press

Thousands of machines sold on the market

Two people in front of a mountain of wood chips

Short lines of communication and dedicated contacts

Decades of experience

Three wood chip briquettes in a mobile phone

German craftsmanship

Close-up of the briquette discharge mechanism on a GROSS briquette press for wood waste

Suitable conveyor systems

GROSS briquette press with a bagging carousel and filled bags of round wood briquettes

Personalised energy advice

Premium service

A GROSS employee advises a customer on a briquette press

Hydraulic tank

Contains oil for lubricating the cylinders

Filling tower

Pre-compaction takes place in the filling tower

Clamping cylinder

This is where the final briquette is formed

Hopper

Generously sized

Press cylinder

Operates hydraulically and compacts the material

Briquette length monitoring

For consistently high-quality briquettes

Mixer

Feeds material into the screw conveyor shaft

Conveyor screw

Feeds material into the filling tower

Technical specifications

The material to be briquetted is fed into the storage hopper either manually or automatically via a filter or conveyor system. A continuously operating agitator and a separately controllable discharge screw then transport it to the pressing unit. There, the material is first pre-compacted and then pressed into the finished briquette without the addition of any binders. To ensure reliable processing, the material’s moisture content must not exceed 18 per cent.

Technical specifications

Briquette diameter (mm): 80
Dimensions (LxWxH) (mm): 2.390 x 1.820 x 1.537
Hydraulic motor (kW): 22
Hydraulic oil charge (l): 600
Weight (approx. kg): 3.000

Download PDF 2 MB

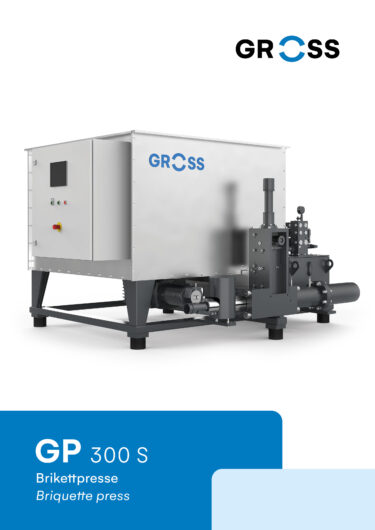

Download PDF 2026_Gross_One-Pager_GP300S_web In a new tab

All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
