The waste wood is fed into the GROSS GAZ 102 S shredder via the hopper. A hydraulic pusher feeds it in a controlled manner against the rotating blade rotor. There, the material is shredded and then passed through the perforated screen. The diameter of the screen holes determines the size of the finished wood chips.
Technical specifications
- Working width (mm)
- 1000
- Fraction size (mm)
- 10-100
- Throughput (kg/h)
- 1.000-2.000 kg/h
- Power (kW)
- 30-45
- Rotor speed (rpm)
- 60–100
- Rotor diameter (mm)
- 368
- Rotor length (mm)
- 1000
- Connection diameter (mm)
- 200
- Length (mm)
- 2.000
- Width (mm)
- 1.800
- Height (mm)
- 1.640
- Weight (approx. kg)
- 2.000
Download PDF

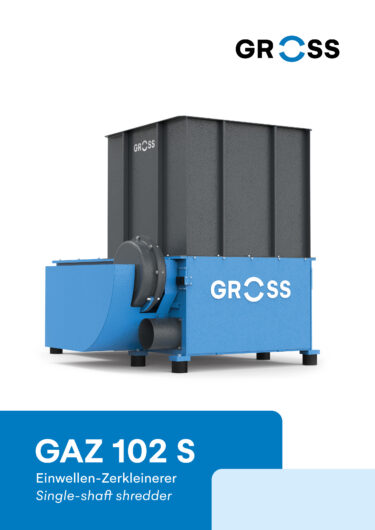

2026_Gross_One-Pager_GAZ102 S_web
In a new tab
All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
