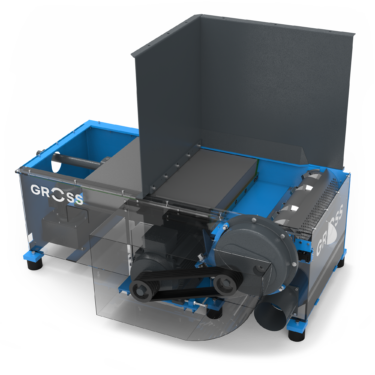

The material enters the GROSS shredder via the hopper. There, a hydraulic slide feeds the material in a controlled manner to the rotating rotor. The cutting blades attached to the rotor reliably shred it. The shredded material then falls through a perforated screen, the size of whose holes determines the desired final particle size.
Technical specifications
- Working width (mm)
- 800
- Fraction size (mm)
- 10-40
- Throughput (kg/h)
- 500-1.000 kg/h
- Power (kW)
- 18,5-22
- Rotor speed (rpm)
- 60–100
- Rotor diameter (mm)
- 252
- Rotor length (mm)
- 800
- Connection diameter (mm)
- 160
- Length (mm)
- 2.000
- Width (mm)
- 1.590
- Height (mm)
- 1.640
- Weight (approx. kg)
- 1.800
Download PDF

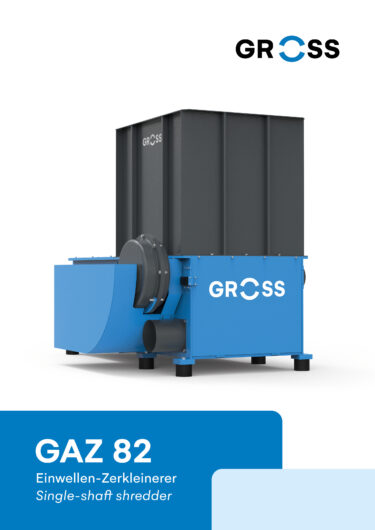

2026_Gross_One-Pager_GAZ82_web
In a new tab
All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
