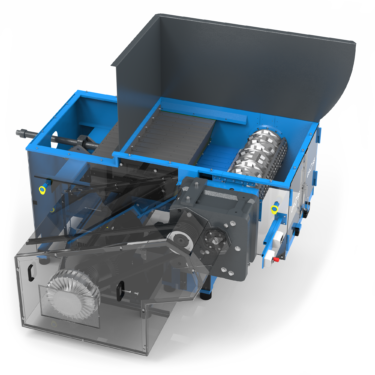

The material is fed into the feed hopper by hand, by forklift truck or via a conveyor system. A hydraulic pusher feeds it in a controlled manner to the slow-rotating rotor. The cutting blades attached to the rotor grip the material and shred it against the stationary counter-blades.
As soon as the pieces are small enough, they fall through the screen fitted below the rotor. The size of the screen’s holes determines the desired final particle size. Depending on the system configuration, the shredded material is then transported away – for example, via a conveyor belt – and fed into the next processing stage.
Technical specifications
- Working width (mm)
- 1000
- Fraction size (mm)
- 20-100
- Throughput (kg/h)
- 500-1.000 kg/h
- Power (kW)
- 37-55
- Rotor speed (rpm)
- 100
- Rotor diameter (mm)
- 368
- Rotor length (mm)
- 1000
- Length (mm)
- 2.955
- Width (mm)
- 2.170
- Height (mm)
- 2.130
- Weight (approx. kg)
- 4.000
Download PDF

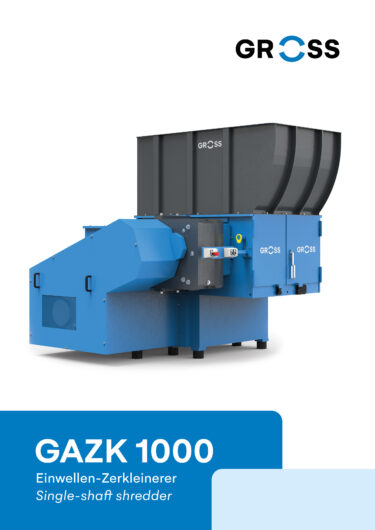

2026_Gross_One-Pager_GAZK1000_web
In a new tab
All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
