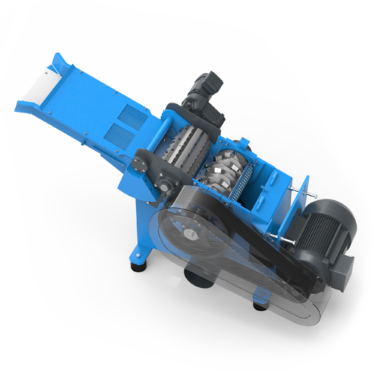

Long pieces of wood, such as battens, profiled timber or narrow square timbers, are fed into the inclined feed chute by hand. A feed roller grips the material and guides it in a controlled manner towards the rotor. There, the rotating cutting blades shred the wood against a fixed counter-blade.
The material remains in the cutting chamber until it can pass through the openings in the screen mounted below the rotor. The selected screen mesh size determines the particle size. The resulting wood chips are then removed from the machine via a dust extraction system or a screw conveyor and sent for further processing.
Technical specifications
- Working width (mm)
- 400
- Fraction size (mm)
- 10-100
- Throughput (kg/h)
- 500-1.000 kg/h
- Power (kW)
- 18,5
- Feed opening width (mm)
- 400x40
- Rotor diameter (mm)
- 252
- Rotor length (mm)
- 400
- Connection diameter (mm)
- 200
- Length (mm)
- 2.180
- Width (mm)
- 1.185
- Height (mm)
- 1.085
- Weight (approx. kg)
- 1.000
Download PDF

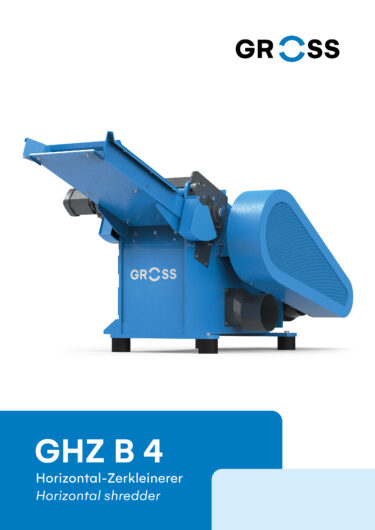

2026_Gross_One-Pager_GHZ B4_web
In a new tab
All technical specifications are approximate. Variations are possible depending on the machine model, material, and operating conditions. The technical data agreed upon in the individual quote and order confirmation are binding. Subject to technical changes.
